Green Storage WB Range Cylinders Professional

Green Storage WB Range Cylinders overview

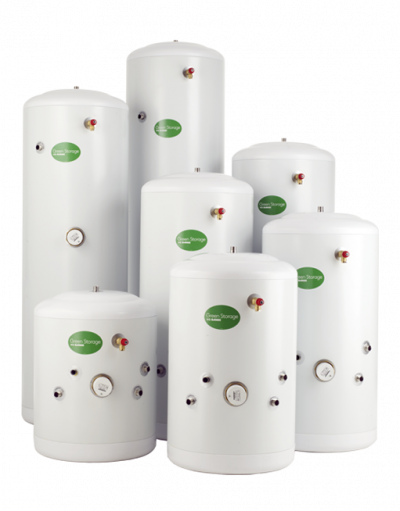

A high quality affordable solution, our Green Storage WB Range of unvented (90-300 litre) and unvented solar (180-300 litre) cylinders meet the demands of any project you’re working on.

Features & Benefits

25 year guarantee on the basic vessel and offer a 5 year guarantee on components as standard*	Larger capacity cylinders with 7 variants from 90 up to 300 litres - all offering high flow rates	Factory installed G3 temperature and pressure relief valve to save time on installations
G3 kit included and can be installed with our system diverter valve kit	Rapid re-heat times with excellent levels of heat retention to speed up hot water demand from your customer

Technical details

Green Storage WB Range Unvented 90

Part number: 7 733 601 298
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 87.9
Height (mm): 745
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 30
Standing heat loss (Watts): 49
Re-heat times - 100% (15-60°C) (minutes): 18.18
Insulation Thickness (mm): 50

Green Storage WB Range Unvented 120

Part number: 7 733 601 299
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 120.1
Height (mm): 933
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 35
Standing heat loss (Watts): 54
Re-heat times - 100% (15-60°C) (minutes): 23.85
Insulation Thickness (mm): 50

Green Storage WB Range Unvented 150

Part number: 7 733 601 300
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 150.4
Height (mm): 1120
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 35
Standing heat loss (Watts): 59
Re-heat times - 100% (15-60°C) (minutes): 27
Insulation Thickness (mm): 50

Green Storage WB Range Unvented 180

Part number: 7 733 601 301
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 180.6
Height (mm): 1303
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 45
Standing heat loss (Watts): 67
Re-heat times - 100% (15-60°C) (minutes): 32.5
Insulation Thickness (mm): 50

Green Storage WB Range Unvented Solar 180

Part number: 7 733 601 306
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 178
Height (mm): 1308
Diameter (mm): 550
Dedicated solar volume (litres): 53.6
Weight-dry (kg): 60
Standing heat loss (Watts): 67
Re-heat times - 100% (15-60°C) (minutes): 32.5
Insulation Thickness (mm): 50

Green Storage WB Range Unvented 210

Part number: 7 733 601 302
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 210.6
Height (mm): 1496
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 50
Standing heat loss (Watts): 75
Re-heat times - 100% (15-60°C) (minutes): 1.79
Insulation Thickness (mm): 50

Green Storage WB Range Unvented Solar 210

Part number: 7 733 601 307
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 204.6
Height (mm): 1496
Diameter (mm): 550
Dedicated solar volume (litres): 51.8
Weight-dry (kg): 65
Standing heat loss (Watts): 75
Re-heat times - 100% (15-60°C) (minutes): 35.15
Insulation Thickness (mm): 50

Green Storage WB Range Unvented 250

Part number: 7 733 601 303
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 250.9
Height (mm): 1746
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 55
Standing heat loss (Watts): 84
Re-heat times - 100% (15-60°C) (minutes): 2.02
Insulation Thickness (mm): 50

Green Storage WB Range Unvented Solar 250

Part number: 7 733 601 308
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 247
Height (mm): 1746
Diameter (mm): 550
Dedicated solar volume (litres): 92.0
Weight-dry (kg): 70
Standing heat loss (Watts): 84
Re-heat times - 100% (15-60°C) (minutes): 40.62
Insulation Thickness (mm): 50

Green Storage WB Range Unvented 300

Part number: 7 733 601 304
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 300.3
Height (mm): 2059
Diameter (mm): 550
Dedicated solar volume (litres): 0
Weight-dry (kg): 60
Standing heat loss (Watts): 93
Re-heat times - 100% (15-60°C) (minutes): 2.24
Insulation Thickness (mm): 50

Green Storage WB Range Unvented Solar 300

Part number: 7 733 601 309
ErP Efficiency Rating: C
ErP Data Sheet: ErP Data Sheet
Hot water capacity (litres): 295.6
Height (mm): 2059
Diameter (mm): 550
Dedicated solar volume (litres): 79.3
Weight-dry (kg): 75
Standing heat loss (Watts): 93
Re-heat times - 100% (15-60°C) (minutes): 51.77
Insulation Thickness (mm): 50

* Terms and Conditions apply
