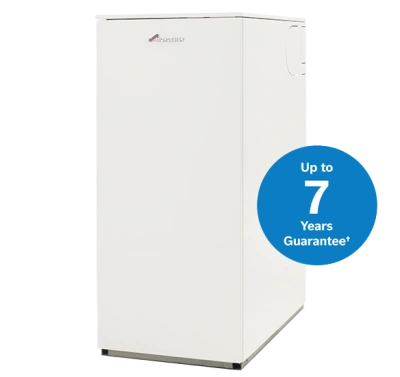

Greenstar Danesmoor Utility Professional

Greenstar Danesmoor Utility overview

Our Greenstar Danesmoor Utility is part of a market leading range of oil regular boilers with outputs up to 32kW.

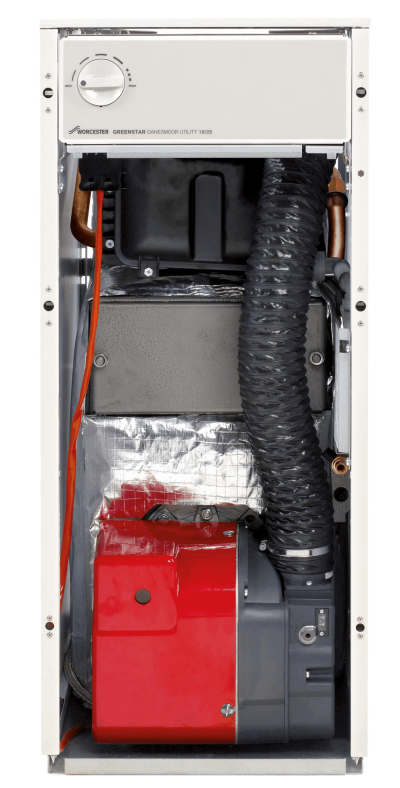

Suitable in both kitchens and utility rooms for small, medium and large sized homes, this boiler has been inspired by your feedback and features an easy to remove one-piece primary baffle and cross firing burner.

The appliance can be used with our range of high efficiency Greenstore cylinders.

Download our easy guide, which covers everything you need to know about the Danesmoor Utility Regular

Standard Guarantee

2 Year

With any Greenstar System Filter

5 Year

With any Greenstar System Filter + £40 (Non-WAI loyalty members only)*

7 year

*Available to loyalty scheme members only. Non-WAI’s can achieve this extended guarantee length with an additional payment of £40. Terms and conditions apply.

Features & Benefits

Cross firing burner	One piece baffle for quick and easy servicing	Easy access oil and hydraulic connections
Accepts a 30°C return temperature making the appliance perfect for modern heating designs	Lightweight aiding installation	Compatible with solar thermal
5 year guarantee on Worcester primary heat exchanger	10 year guarantee on the plate heat exchanger	80/125mm room sealed flues with lengths of up to 8m available
Plume management of up to 5m with conventional and flexi-flue kits also available

Technical details

Greenstar Danesmoor Utility 12/18 2022+

Part number: 7 731 600 245
ErP Efficiency Rating: A
ErP Data Sheet: ErP Data Sheet
Fuel Type: Oil
Control Options
EasyControl Compatible
Solar Compatible
Central heating output (kW): 18
Dimensions (mm) height x width x depth: 855 x 370 x 600
Clearances (mm) above, sides, below and front: 300 x 5 x 600
Maximum horizontal flue (mm): High Level Horizontal 5M, Rear Exit Horizontal 6M, Side Exit Horizontal 5M
Maximum vertical flue (mm): 8000
Ingress protection rating: IP20
Minimum inlet pressure (bar): N/A
Lift weight (kg): 104

Greenstar Danesmoor Utility 18/25 2022+

Part number: 7 731 600 246
ErP Efficiency Rating: A
ErP Data Sheet: ErP Data Sheet
Fuel Type: Oil
Control Options
EasyControl Compatible
Solar Compatible
Central heating output (kW): 25
Dimensions (mm) height x width x depth: 855 x 370 x 600
Clearances (mm) above, sides, below and front: 300 x 5 x 600
Maximum horizontal flue (mm): High Level Horizontal 5M, Rear Exit Horizontal 6M, Side Exit Horizontal 5M
Maximum vertical flue (mm): 8000
Ingress protection rating: IP20
Minimum inlet pressure (bar): N/A
Lift weight (kg): 108

Greenstar Danesmoor Utility 25/32 2022+

Part number: 7 731 600 247
ErP Efficiency Rating: A
ErP Data Sheet: ErP Data Sheet
Fuel Type: Oil
Control Options
EasyControl Compatible
Solar Compatible
Central heating output (kW): 32
Dimensions (mm) height x width x depth: 855 x 370 x 600
Clearances (mm) above, sides, below and front: 300 x 5 x 600
Maximum horizontal flue (mm): High Level Horizontal 5M, Rear Exit Horizontal 6M, Side Exit Horizontal 5M
Maximum vertical flue (mm): 8000
Ingress protection rating: IP20
Minimum inlet pressure (bar): N/A
Lift weight (kg): 115

Related Accessories

Boiler Accessories	Part number
CondenseSure	7 716 192 746
EasyControl Adapter	7 736 701 560				Installation Manual

Flashing Kits	Part number
Flat roof flashing kit (100mm & 125mm dia.)	7 716 191 090
Pitched roof flashing kit (100mm & 125mm dia)	7 716 191 091

Flue	Part number
1000mm extension kit, 100mm dia	7 716 190 066
45º bend, 100mm dia	7 716 190 069
45º bend, 80/125mm	7 716 190 035
500mm extension kit, 100mm dia	7 716 190 067
90º flue bend	7 716 190 034
Flue extension, 80/125mm	7 716 190 033
Greenstar Oilfit 100mm flexible flue kit, 12m	7 716 190 077
Greenstar Oilfit 100mm flexible flue kit, 8m	7 716 190 076
Flue Damper	7 716 190 101
Stainless steel flue terminal guard	7 716 190 050
Telescopic extension 100mm dia	7 716 190 068
80/125 standard telescopic flue kit	7 716 190 064
80/125 short telescopic flue kit	7 716 190 062
Wall cover plate kit 100mm dia.	7 716 190 074
Support bracket kit (125mm dia.)	7 716 191 174
600mm extension	7 716 190 097
Conventional vertical flue kit, 100/103mm	7 716 190 104
Infill Plate Kit (for high level horizontal flues)	7 716 191 105

Plume	Part number
Plume management kit	7 716 190 092
Plume management 45º bend	7 716 190 094
Plume management 90º bend	7 716 190 095
1,000mm extension	7 716 190 093
